Optimising Nip Angles in Jaw Crushers for Maximum Efficiency
In mining and quarrying operations, maximising crusher throughput is always a key objective. However, operational changes intended to increase output such as tightening the Close Side Setting (CSS) can sometimes have the opposite effect if they negatively impact the nip angle in jaw crushers.
What Is a Nip Angle in a Jaw Crusher?

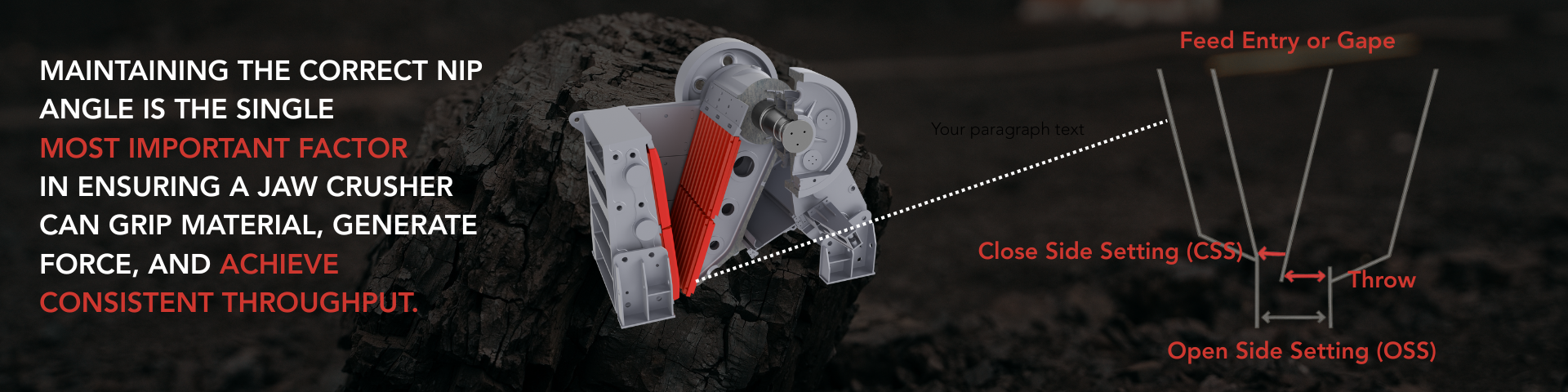

The nip angle is the angle formed between the fixed and moving jaw plates. It determines how efficiently the crusher grips and breaks material. For most primary jaw crushers, the optimal nip angle lies between 16° and 23°, with 20° considered ideal for efficient crushing performance.
Why the Nip Angle Matters
The nip angle directly influences the crusher’s ability to grip material, apply crushing force effectively, and maintain consistent throughput.
- A steeper nip angle improves rock gripping, reduces liner wear, and enhances material flow.
- A shallow nip angle increases scrubbing, accelerates liner wear, and may reduce throughput.
The Relationship Between CSS and Nip Angle
Reducing the CSS can alter the geometry of the chamber and push the nip angle outside the ideal range, reducing efficiency and increasing wear.
Optimising Jaw Profiles for Performance
Mining Wear Parts engineers custom profiles that maintain the correct nip angle even when CSS changes, helping operations increase tonnage without reducing reliability or wear life.
Key Takeaway
Maintaining an optimal nip angle around 20° is essential for maximising production while managing wear.
What is a nip angle in a jaw crusher?
The nip angle is the angle formed between the fixed and moving jaw plates. It determines how efficiently the crusher grips and compresses material.
What is the best nip angle for a jaw crusher?
Most primary jaw crushers operate efficiently with a nip angle between 16° and 23°, with 20° being optimal for balancing grip, wear life, and throughput.
How does the Close Side Setting (CSS) affect the nip angle?
Reducing the CSS changes the chamber geometry and can steepen or flatten the nip angle. If too tight, it may push the nip angle outside design limits, reducing grip and increasing wear.
How can I optimise the nip angle in my jaw crusher?
Use engineered jaw profiles designed to maintain the correct nip angle even when adjusting the CSS. Contact MWP for tailored liner designs that improve throughput and reliability.
